Specifications

• Speed: .14 sec/60° 4.8 volts
• Torque: 92 oz-in (6.6 kg-cm) 4.8 volts
• Weight: 1.8oz (50g)
• Power Supply: 4.8V (Futaba does not recommend using 6V)

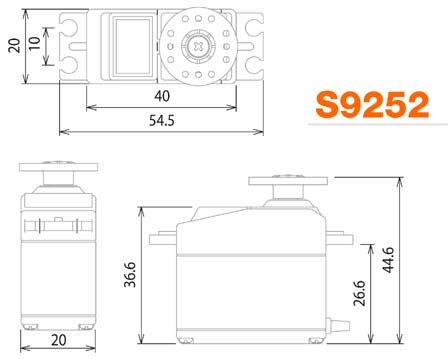

• Length: 1.6" (41mm)
• Width: .8" (20mm)
• Height: 1.5" (38mm)
•

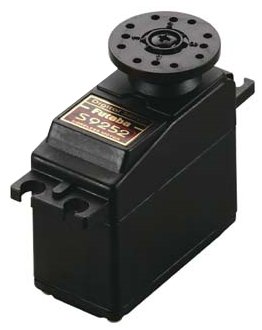

This is the Futaba S9252 Digital High Torque, All-Purpose F3C Servo with High-Current Wire Lead and "J" Connector Pre-Installed.

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

FEATURES:
Digitally enhanced microprocessors cut about half the response time from transmitter input to servo reaction. Coreless motor Dual ball bearings on the output shaft Plastic/nylon gear train Moderately high speed High current, high capacity wire lead with low resistance Case is made of Black plastic Dust and water resistant (Not waterproof) Works well with all control surfaces on F3C helicopters or precision fixed wing aircraft.
