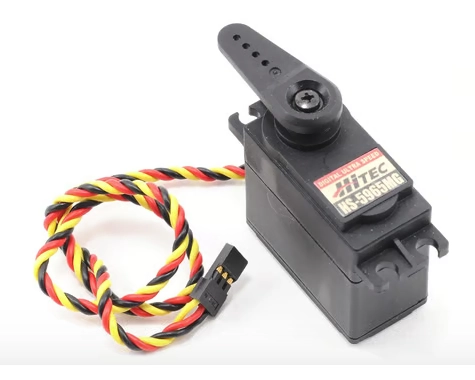

Hitec HS-5965MG Ultra Speed Digital Coreless Metal Gear Servo S/JR/Z

This is the HS-5965MG Heavy Duty Digital Metal-Geared, Coreless, Ball Bearing, Ultra-Speed Servo from Hitec. This version of the servo has a universal connector which will fit Airtronics, JR, Hitec and Futaba receivers (be careful with the polarity of the connector for Futaba radios).

The HS-5965MG Digital Coreless Ultra Speed servo is designed to withstand the stresses of larger scale high performance aircraft or on and offroad vehicles. The case top has been improved with 2 Brass Axial Bushings for greater strength and stability to insure longevity and smooth rotation. The HS-5965MG also features a coreless motor for excellent resolution and centering along with the added holding power and programmability of the Hitec Digitals. The HS-5965MG replaces the HS-5925MG.

The specs on this servo are:

• Transit time: 0.13 sec/ 60 deg. @ 4.8V, 0.10 sec/ 60 deg. @ 6.0V,
• Torque: 8.0 kg/cm (111 oz/in) @ 4.8V, 10.0 kg/cm (138 oz/in) @ 6.0V
• Weight: 62g (2.18 oz)
• Length: 39mm (1.6")
• Width: 20mm (0.78")
• Height: 38mm (1.5")
