*These features are only programmable with the HFP-20 field programmer.
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.16 ~ 0.13 |
| Maximum Torque Range oz. / in. | 144 ~ 172 |
| Maximum Torque Range kg. / cm. | 10.4 ~ 12.4 |
| Current Draw at Idle | 9 mA |
| No Load Operating Current Draw | 240 mA |
| Stall Current Draw | 3,000 mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |

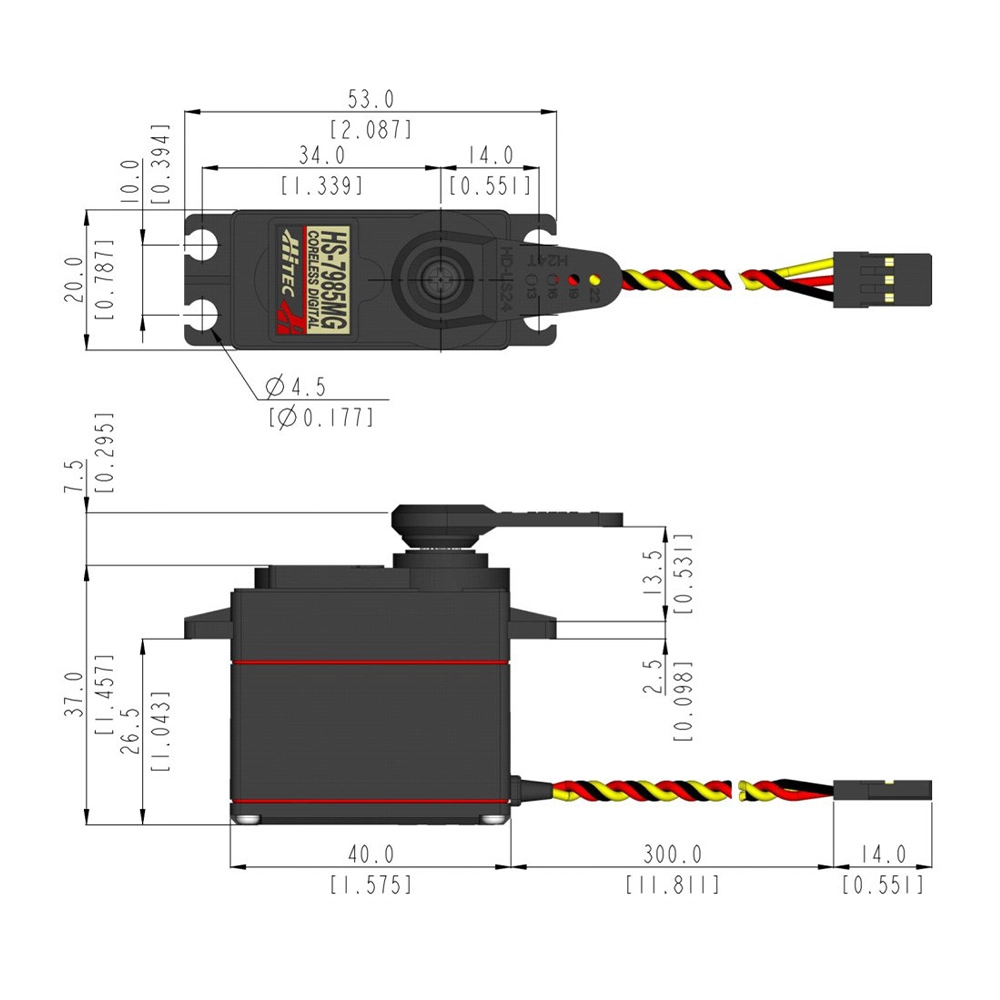

| Dimensions (Inches) | 1.57 x 0.78 x 1.45 |
| Dimensions (Metric) | 40.0 x 20.0 x 37.0 |
| Weight (Ounces) | 2.18 |
| Weight (Gram) | 62.0 |
| Circuit Type | G2 Programable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 25 - 30% |
| Sailplane | 2 meters and up |
| 3D Performance | 25 - 30% |
| Scale | 25 - 30% |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | 1/8th |
| Monster Truck | 1/8th |
| Buggies | 1/8th |
| Truggies | 1/8th |
| Short Course / Truck | 1/8th |
| Crawlers | N / A |
| Sail Boat | = >1M & Scale |
| Power Boat | N / A |
