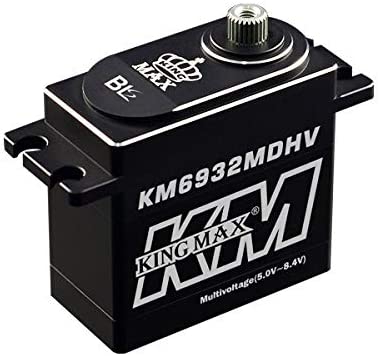

Code:KM6932MDHV
Gear:Steel gear
Spline:25T
Motor:Brushless motor
Bearing:2BB
Dead band: 2.s default
Waterproof:Yes
Operating Voltage:DC5.0~8.4V
Working frequence:1520?s/330hz

Detail Features:
-- High performance programmable digital standard servo
-- High-precision steel gear
-- High quality brushless motor
-- Dual ball bearings
-- Full CNC aluminium hulls and structure
-- Waterproof Specifications:
Operating Speed (5.0V): 0.12sec/60
Operating Speed (6.0V): 0.10sec/60
Operating Speed (7.4V): 0.09sec/60
Operating Speed (8.4V): 0.08sec/60
Stall Torque (5.0V): 25.5 kg.cm (354.2oz/in)
Stall Torque (6.0V): 27.8kg.cm (386.14oz/in)
Stall Torque (7.4V): 33.5kg.cm (465.32oz/in)
Stall Torque (8.4V): 35.8kg.cm (497.26oz/in)
Dimensions:40.X20.X38mm/1.59X0.80X1.43in
Weight: 78g (2.75oz)
Connector/ Wire : 22AWG,JR265 mm (10.43in)
Packing Detail:

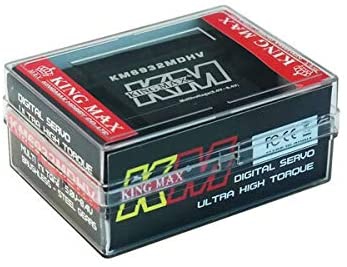

Transparency plastic box size: 83.5mmx63.5mmx37.5mm weight: 125g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Cross weight:13kg
Optional Accessories:

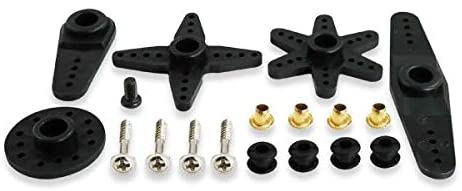

1--Offered accessaries
2--1set of gearset(need to pay), including gears, shafts and 2 ball bearings(not include motor gear) Item specifics:
Use: Vehicles & Remote Control Toys
Rc parts & accs: Servos
Technical parameters: KV1100
Model number: KM6932MDHV
For vehicle type: Airplanes
Remote control peripherals/devices: Servos
Size: 40.X20.X38mm/1.59X0.80X1.43in
Material: Metal
Tool supplies: KM6932MDHV
Four-wheel drive attributes: KM6932MDHV
Upgrade parts/accessories: KM6932MDHV
