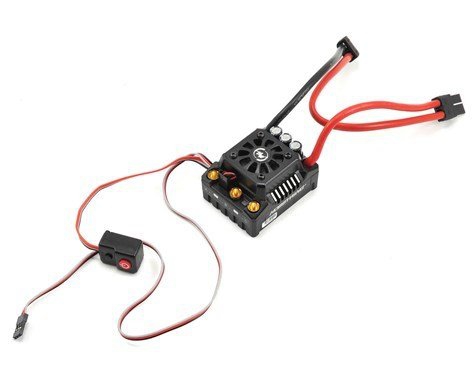

Ezrun Max8 V3 Brushless esc for 1:8

High Reliability & Durability
Reliable hardware combine with advanced software allows the ESC to no only provide extremely high output but also protect itself timely from damages caused by overload. It significantly reduces the possibility of getting damaged by heavy load and improves the reliability and durability.

Get Flexibility & Versatility
The ESC has strong outbreak and stable output so vehicle can do different moves without a problem, no matter aggressive start-up and wheelie, 720-degree flip (*), High speed running on straight tracks or flying over slopes. It always provide the power more than sufficient. Besides driver can adjust relevant parameters for smooth and soft start-up.

• Not every vehicle can do the 720-degree flop because f different chassis design.

Applicable to all weather conditions
Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.

Super Built-in BEC
The world’s 1st 1:8th scale ESC adopted the super built-in BEC with the max output current of up to 15A and switchable output voltage (6-7,2V). It can drive different servos, high voltage servos at ease and bring amazing control feel to drivers.

Advanced and Secure Electronic Switch
The electronic switch with the lifespan of over 50 000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design. Completely solved problems like stuck reed and rust contact points caused by dust and moisture, switching of automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.

Plug and Play
Standard 6.5mm gold plated connectors at the ESC’s output end are perfectly compatible with stock motor connectors of many popular 1:8 scale monster trucks like Traxxas and HPI- Moreover Traxxas style or Deans(T-plug)’s have been soldered to the ESC’s input end for different battery connectors, driver can plug and play and free from possible re-soldering work. (different models for TRX and deans plugs)

Wide applicability
The ESC provides the optimal upgrade solution for many popular 1:8th scale monster trucks like Traxxas E-Revo & E-Maxx, HPI Savage and Thunder Tiger E-Mat. It is also applicable to the other trucks and buggies.

Almost Maintenance free
The whole ESC except the cooling fan is basically maintenance free. Besides the fan has also adopted the special anti-shock design, reduced damage brought by frequent jumps of the vehicle, greatly reduced maintenance work to the fan.

• Specification: Cont./Peak Current : 150A / 950A Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode) Applications: 1/8th Touring Car, Buggy, Truggy and Monster Truck Motor Limit: Brushless Motor Limit with 4S LiPo/12 cells NiMH: KV≤3000 (4274 size motor)
• Brushless Motor Limit with 6S LiPo/18 cells NiMH：KV≤2400 (4274 size motor)

LiPo / NiMH Cells: 3-6S LiPo / 9-18S NiMH

BEC Output 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)

BEC voltage: 6V/7.2V

Size / Weight 59.8(L)*48(W)*36.8(H)/173.5g

Programming Port FAN/PRG Port

Plug XT90

Hobbywing 30103201 EzRun MAX8 V3 Fırçasız Hız Kontrol Ünitesi TRX Soket ESC
