Specifications
• Output: 30A continuous; 40Amps for 10 seconds
• Input voltage: 2-4 cells Lithium Polymer / Lithium Ion battery or 5-12 cells NiMH / NiCd
• BEC: 5V, 3Amp for external receiver and servos
• Max Speed: 2 Pole: 210,000rpm; 6 Pole: 70,000rpm; 12 Pole: 35,000rpm
• Max Speed: 2 Pole: 210,000rpm; 6 Pole: 70,000rpm; 12 Pole: 35,000rpm
• Size: 55mm x 26mm x 13mm
• Smooth, Linear and Precise throttle response • Low-Voltage cut-off protection • Over-heat protection • Separate voltage regulator IC for the microcontroller to provide anti-jamming capability • Supported Motor Speed (Maximum): 210000RPM (2 poles), 70000RPM (6poles), 35000RPM (12 poles)

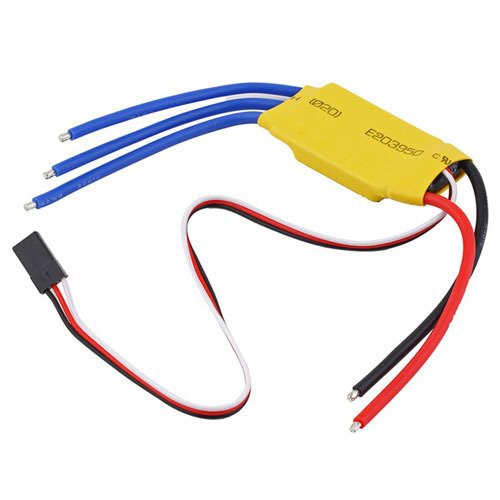

Features: • High quality MOSFETs for BLDC motor drive • High performance microcontroller for best compatibility with all types of motors at greater efficiency • Fully programmable with any standard RC remote control • Heat sink with high performance heat transmission membrane for better thermal management • 3 start modes: Normal / Soft / Super-Soft, compatible with fixed wing aircrafts and helicopters • Throttle range can be configured to be compatible with any remote control available in the market Figure 1: 30A BLDC ESC • Output: 30A continuous; 40Amps for 10 seconds • Input voltage: 2-4 cells Lithium Polymer / Lithium Ion battery or 5-12 cells NiMH
Smooth, Linear and Precise throttle response • Low-Voltage cut-off protection • Over-heat protection • Separate voltage regulator IC for the microcontroller to provide anti-jamming capability • Supported Motor Speed (Maximum): 210000RPM (2 poles), 70000RPM (6poles), 35000RPM (12 poles) Package contains: One 30A BLDC Motor
