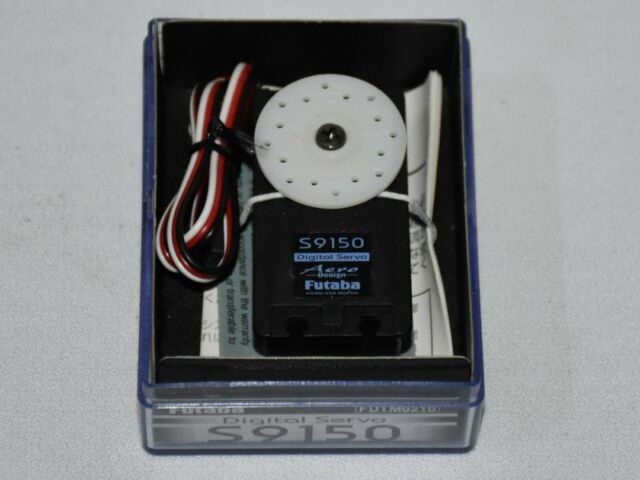

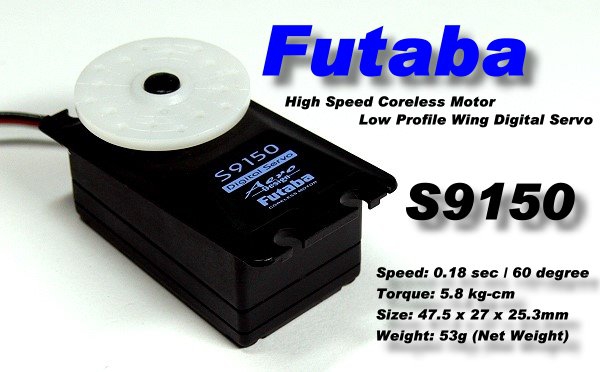

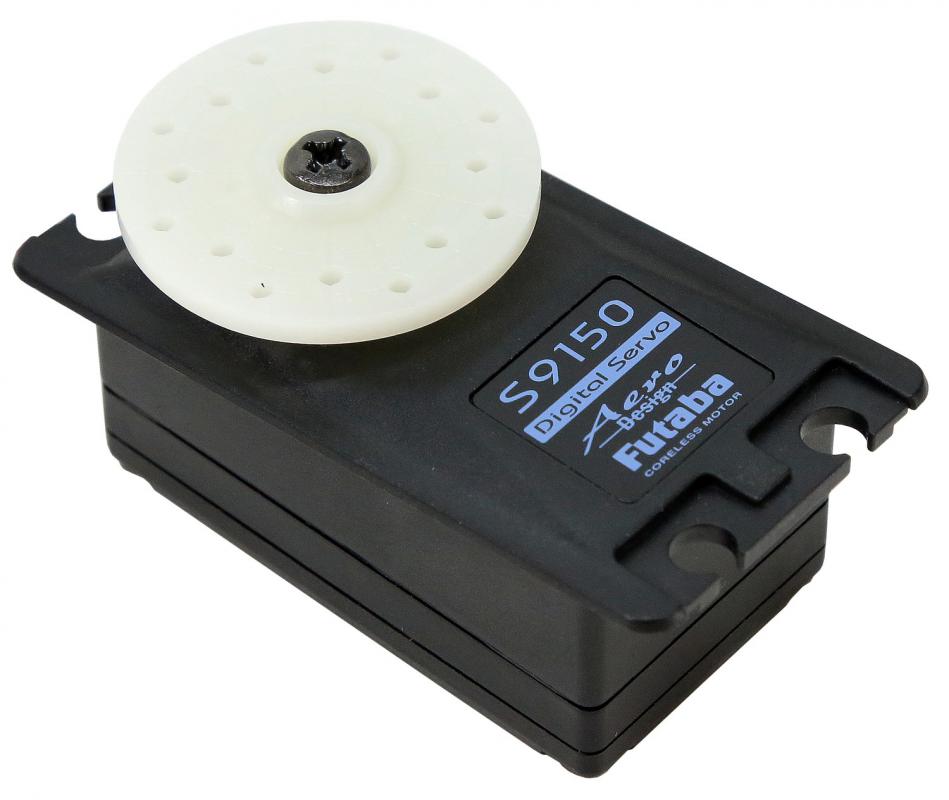

FUTABA S9150 low profile F3A servo
| Dimensions | 1.9" x 1.1"x 1.0" (48 x 28 x 25mm) |
|---|---|
| Product Weight | 1.9oz. (53g) |
| Output Shaft Style | 25 Tooth (3F) Spline |
| Voltage Range | 4.8V |
| No-Load Speed (4.8V) | 0.18sec/60° |
| Stall Torque (4.8V) | 81 oz/in. (5.8kg.cm) |
| Pulse Amplitude | 3V - 5V |
| Operating Temperature | -20 to +60° C |
| Motor Type | Coreless Motor |
| Potentiometer Drive | Indirect Drive |
| Output Shaft Support | Dual Ball Bearings |
| Gear Type | Straight cut spur |
| Gear Material | Metal |
| Wire Length | 12" |
